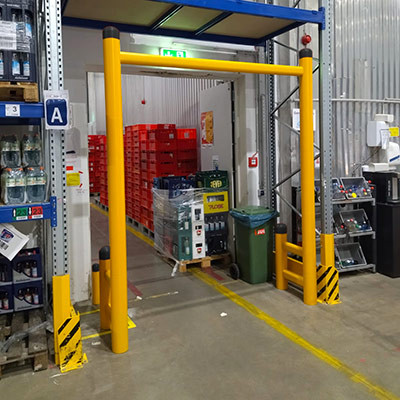

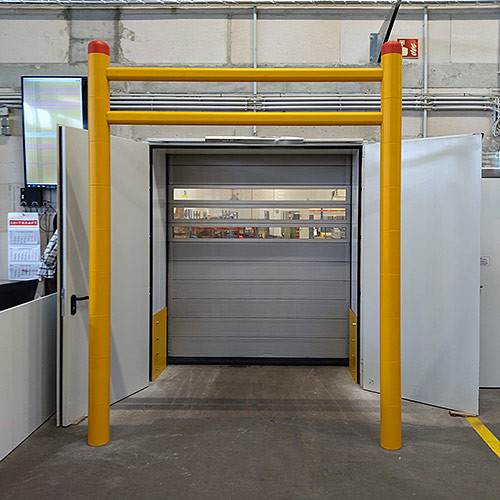

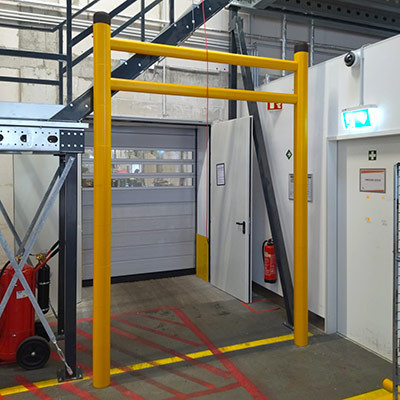

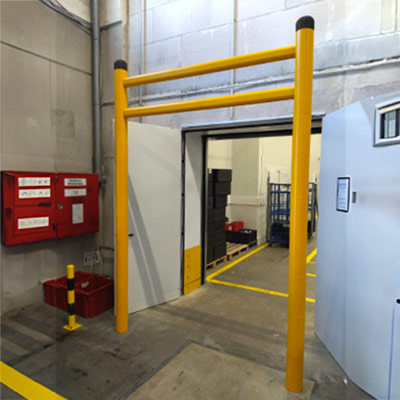

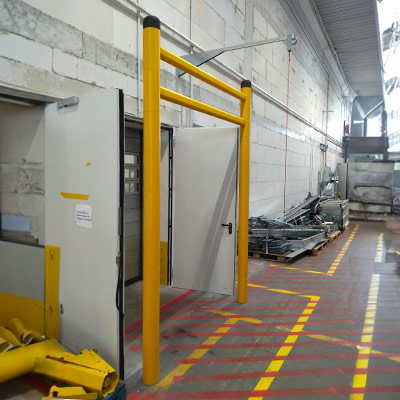

Height Restriction Barriers
Height Restriction Barriers are designed to protect overhead equipment, industrial doors, HVAC ducts, fire sprinkler pipes, overhead walkways, and all kinds of assets subject to potential impact at elevated heights. Suitable for outdoor and indoor applications, including Parking Lot entrance doors. Upon request, Height Restrictors can be equipped with sound sensors to improve alarm notice in case of an impact. To understand which Height Restrictor model suits best the needs, it starts from assessing the Impact Safety Risk:
- Type of material handling equipment moving around: vehicle model & weight (Kg)
- Average speed at which the material handling equipment runs: km/h
- Possible angle of impact for Height Restrictor is always 90°
The mix of this data helps our Safety Consultant to advise about the best guardrail model and its applications. Contact us for more on-line information or free on-site consultancy.
Technical Specs
Download Technical Specs in PDF
Bollards
| Diameter D1/D2 - mm |
Height H - mm |
Resistance Joules |
Anchoring Pullout kN |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|
| 140/120 | 1600-4080 | 23950 | 60 | 1 370 | 59 | UL94: HB |
Rails
| Diameter mm |
Height H - mm |
Length L - mm |
Resistance Joules |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|
| 55 | 110 | 2000-3000-4000 | 7 930 | 250 | 59 | UL94: HB |
Customized solution and colours upon request
Precisely What You Need
Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.
Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com
Technology
FLEXAFE™
Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.
FOOD SAFE
Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale
100% recyclable
Temperature Range -40° to +50°
ROOTLOCK®
World‘s most advanced and safe Anchorage System. It helps the floor to absorb violent and repeat vehicles impacts without damaging the floor.
Cutting-edge Anchorage System Design
Anti-Shrinkage Cement
Applications
Compliant Crash Testing
We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.
- We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h) - We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
- We make sure vehicle impact takes place at the worst-scenario angle: 90°.
Finally, Bambarrier product is certified compliant when:
- It stops the crashing vehicle safely without breaking itself and without breaking the floor.
- It can be hit repeatedly without getting loose and without breaking the floor.
- When after an impact, it occupies a very small space on the floor.
Crash tests - Bambarrier Handrail
Crash tests - Bambarrier Height Restriction Barrier
