High Impact Safety Guards
High Impact Safety Guards make a significant contribution to safety by protecting pedestrians and workers from collisions with vehicles, while also protecting buildings and infrastructure from damage. These barriers effectively regulate traffic and prevent unauthorised entry. Thanks to their distinctive colour, the barriers are highly visible even in low-light conditions, alerting drivers to potential hazards. The barriers are easy to install and maintain, made of strong and durable materials that ensure their long life and reliable functionality.
Technical Specs
Download Technical Specs in PDF

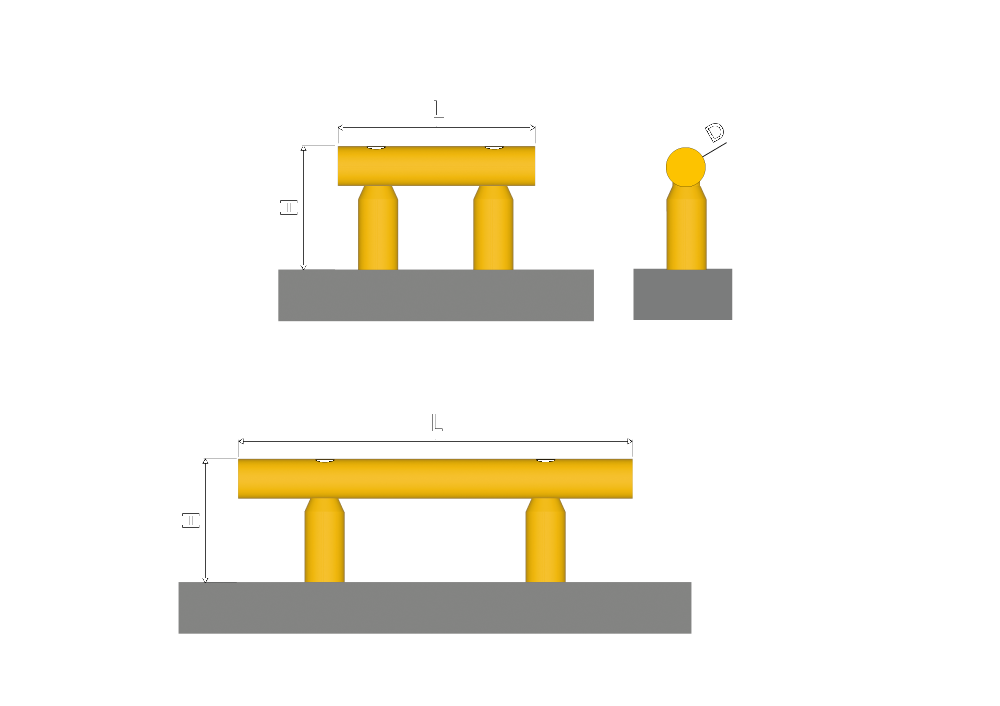

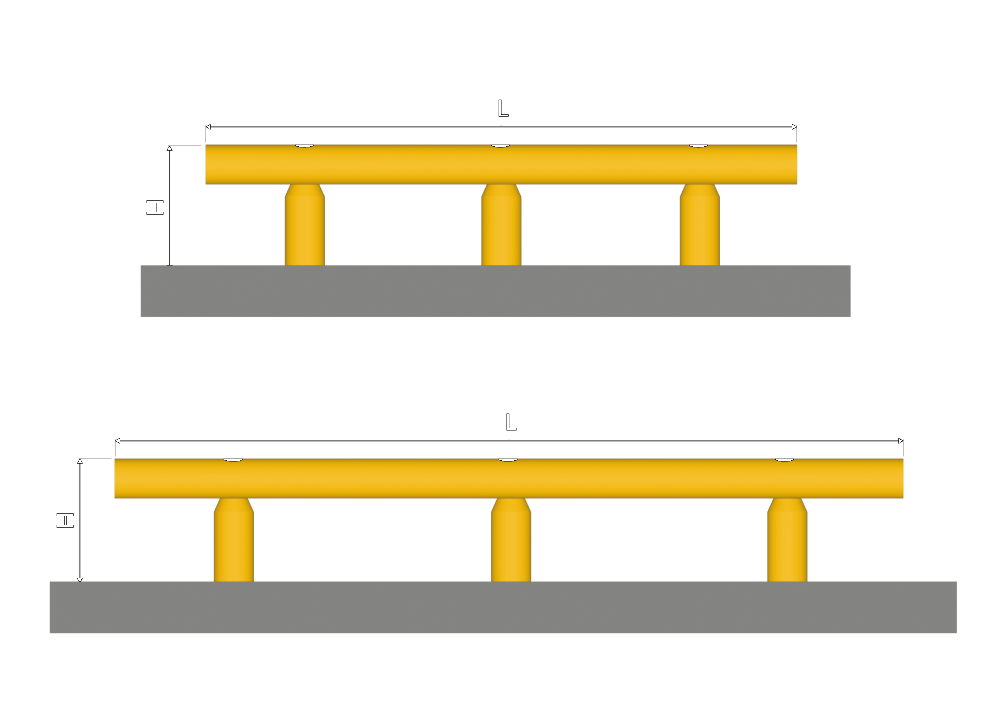

| Diameter D - mm |
Height H - mm |
Length L - mm |
Resistance Joules |
Anchoring Pullout kN |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|---|
| 70 | 225 | 500-1000-1500-2000 | 9 369 | 190 | 94 | 59 | UL94: HB |
| 70 | 270 | 500-1000-1500-2000 | 9 369 | 190 | 94 | 59 | UL94: HB |
| 100 | 250 | 500-1000-1500-2000 | 19 360 | 190 | 140 | 59 | UL94: HB |
| 100 | 300 | 500-1000-1500-2000 | 19 360 | 190 | 140 | 59 | UL94: HB |
| 120 | 295 | 500-1000-1500-2000 | 33 950 | 190 | 183 | 59 | UL94: HB |
| 120 | 365 | 500-1000-1500-2000 | 33 950 | 190 | 183 | 59 | UL94: HB |
Customized solution and colours upon request
Impact Energy Calculator
(please fill in the details for calculation)
Impact energy result - Joules
Precisely What You Need
Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.
Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com
Technology
FLEXAFE™
Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.
FOOD SAFE
Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale
100% recyclable
Temperature Range -40° to +50°
ROOTLOCK®
World‘s most advanced and safe Anchorage System. It helps the floor to absorb violent and repeat vehicles impacts without damaging the floor.
Cutting-edge Anchorage System Design
Anti-Shrinkage Cement

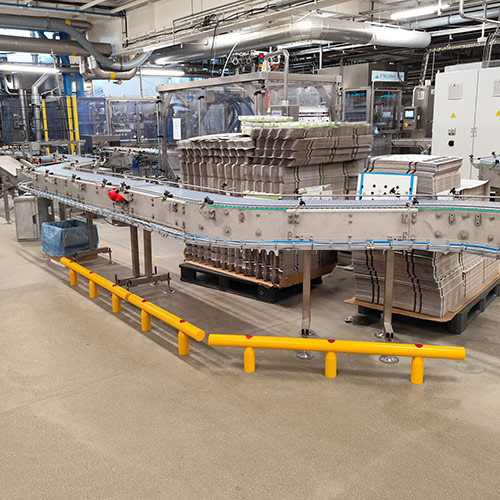

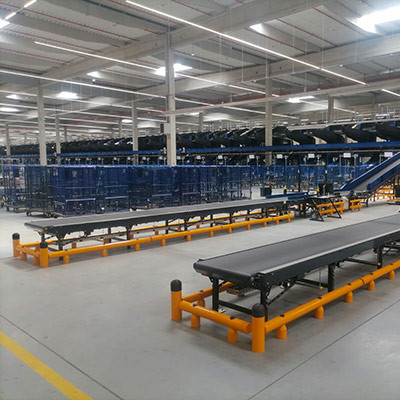

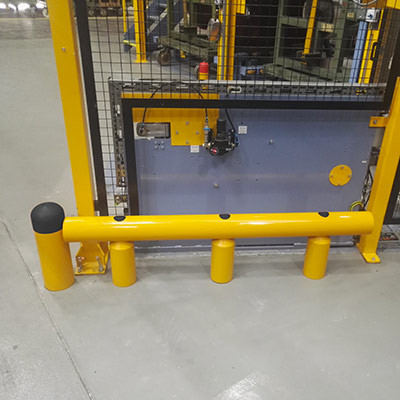

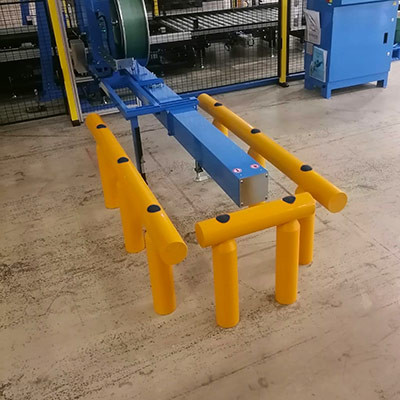

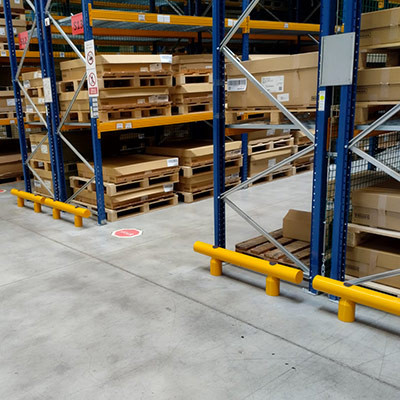

Applications

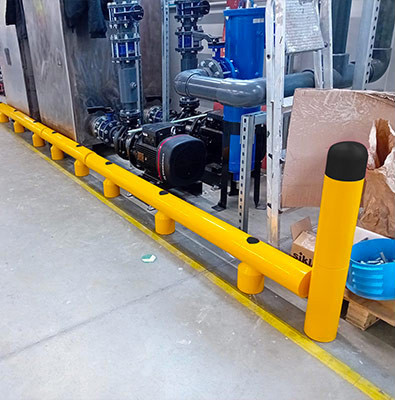

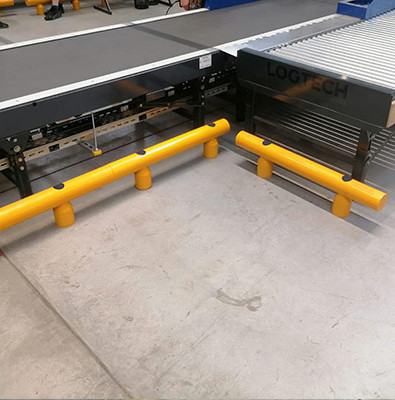

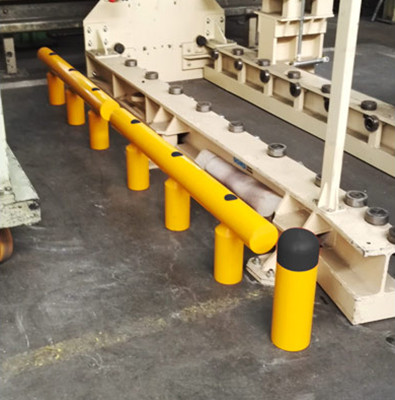

Good Protection

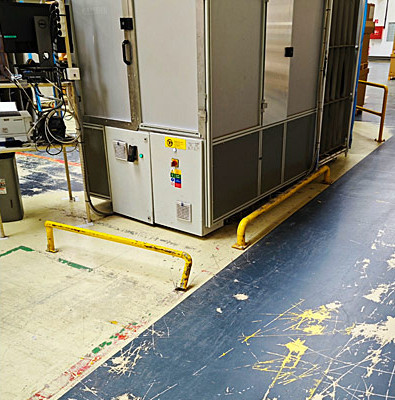

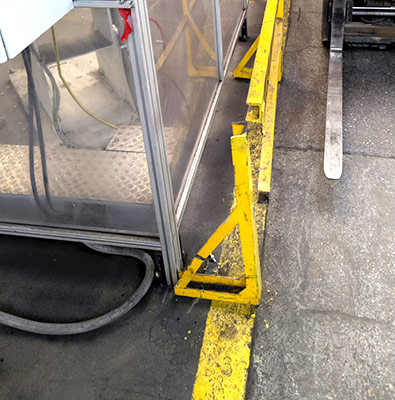

Bad Protection
Compliant Crash Testing
We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.
- We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h) - We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
- We make sure vehicle impact takes place at the worst-scenario angle: 90°.
Finally, Bambarrier product is certified compliant when:
- It stops the crashing vehicle safely without breaking itself and without breaking the floor.
- It can be hit repeatedly without getting loose and without breaking the floor.
- When after an impact, it occupies a very small space on the floor.
Crash tests - Bambarrier Impact Safety Guards
Guard Fixing
