Impact Safety Bollards
Impact Safety Bollards are designed to protect mainly corners. Thus, bollards can be applied for different scopes: door protection, rack leg protection, column protection, etc. Bollards are usually installed where vehicles run in a roundabout movement. To understand which bollard model suits best the needs, it starts from assessing the Impact Safety Risk:
- Type of material handling equipment moving around: vehicle model & weight (Kg)
- Average speed at which the material handling equipment runs: km/h
- Possible angle of impact at which a material handling equipment can crash: 15°, 30°, 45° or 90°
The mix of this data helps our Safety Consultant to advise about the best bollard model and its applications. Contact us for more on-line information or free on-site consultancy.
Technical Specs
Download Technical Specs in PDF
| Diameter D - mm |
Height H - mm |
Resistance Joules |
Anchoring Pullout kN |
Total Floor Space mm |
IP Grade | Flame Extinguishing Rate |
|---|---|---|---|---|---|---|
| 100 | 450 | 10 500 | 580 | 343 | 59 | UL94: HB |
| 120 | 450 | 16 850 | 580 | 317 | 59 | UL94: HB |
| 140 | 450 | 23 950 | 580 | 265 | 59 | UL94: HB |
| 120 | 780 | 16 850 | 580 | 400 | 59 | UL94: HB |
| 140 | 780 | 23 950 | 580 | 375 | 59 | UL94: HB |
| 120 | 1110 | 16 850 | 580 | 495 | 59 | UL94: HB |
| 140 | 1110 | 23 950 | 580 | 450 | 59 | UL94: HB |
Customized solution and colours upon request
Impact Energy Calculator
(please fill in the details for calculation)
Impact energy result - Joules
Precisely What You Need
Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.
Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com
Technology
FLEXAFE™
Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.
FOOD SAFE
Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale
100% recyclable
Temperature Range -40° to +50°
ROOTLOCK®
World‘s most advanced and safe Anchorage System. It helps the floor to absorb violent and repeat vehicles impacts without damaging the floor.
Cutting-edge Anchorage System Design
Anti-Shrinkage Cement
Applications

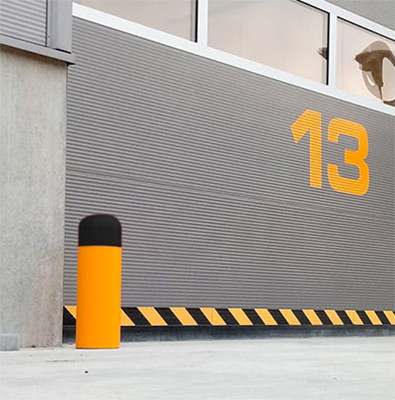

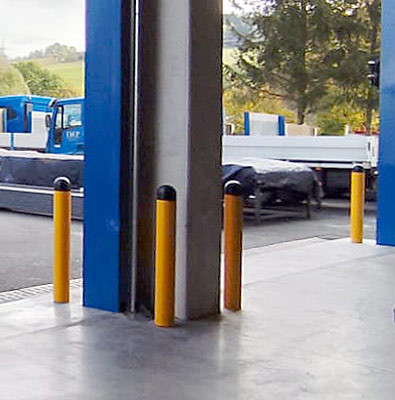

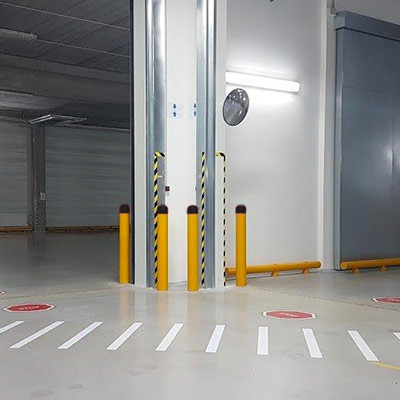

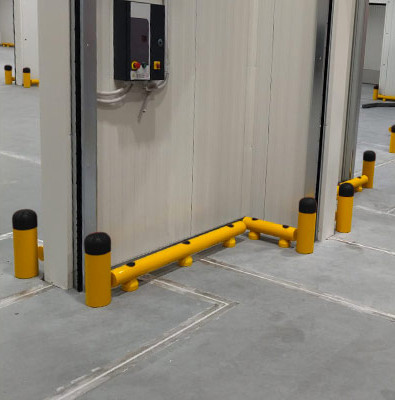

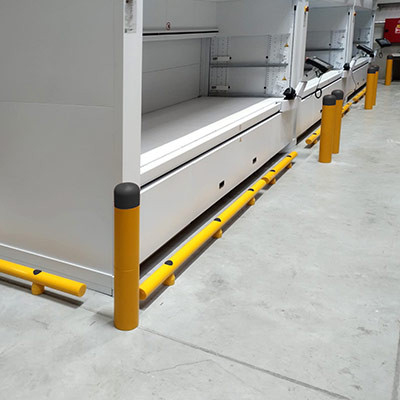

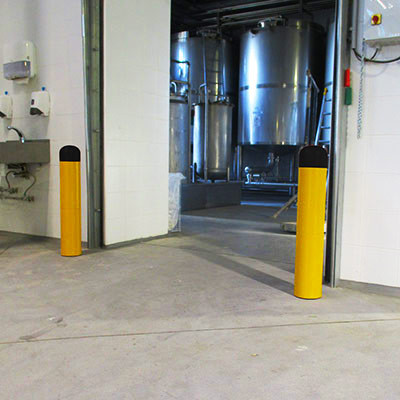

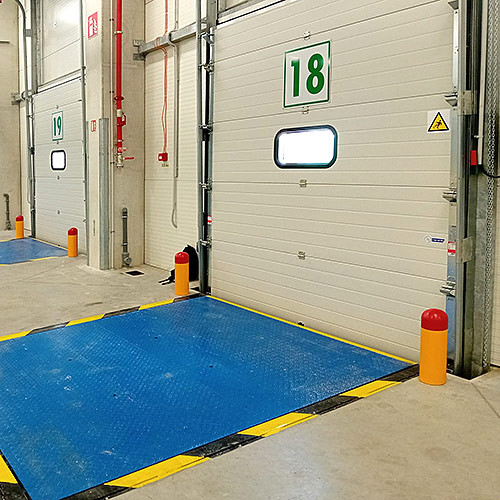

Good Protection

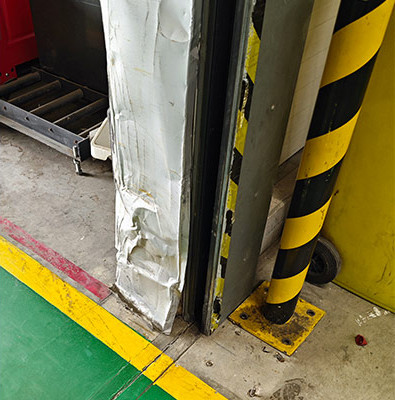

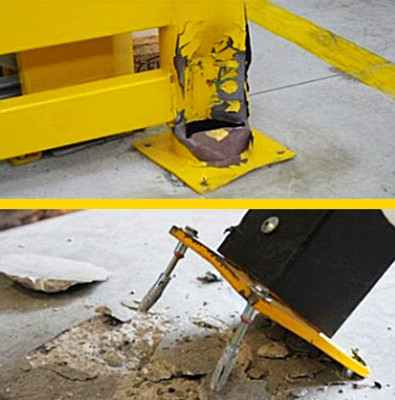

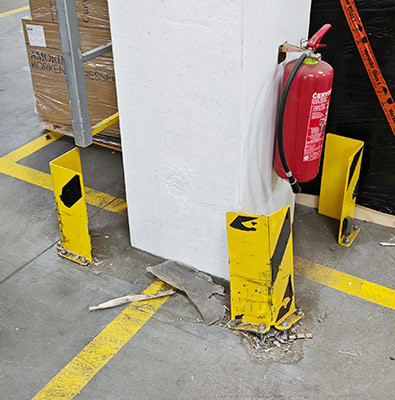

Bad Protection
Compliant Crash Testing
We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.
- We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h) - We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
- We make sure vehicle impact takes place at the worst-scenario angle: 90°.
Finally, Bambarrier product is certified compliant when:
- It stops the crashing vehicle safely without breaking itself and without breaking the floor.
- It can be hit repeatedly without getting loose and without breaking the floor.
- When after an impact, it occupies a very small space on the floor.
Crash tests - Bambarrier Impact Safety Bollards
