Dock Lifting Barriers

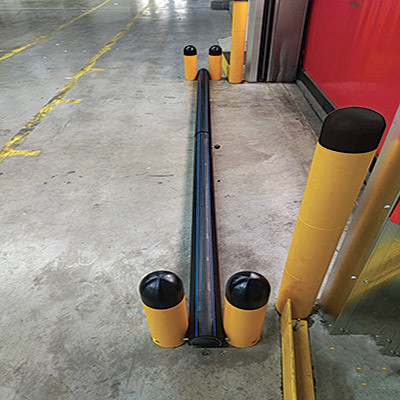

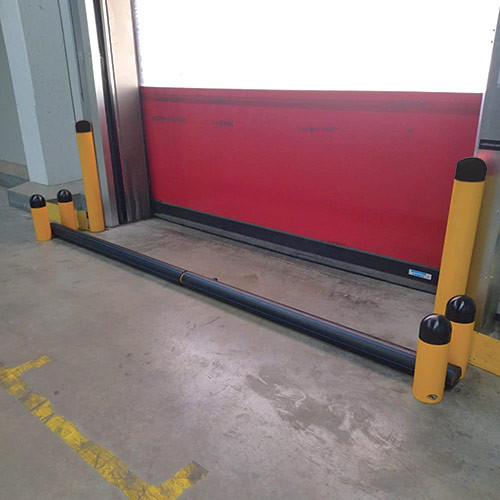

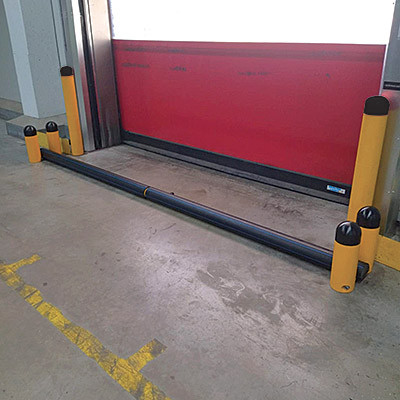

Dock Lifting Barrier is designed to protect ramps from unintended vehicle movement. This sturdy barrier effectively absorbs impacts, especially in the event of a collision with a vehicle. It features a manually operated lifting mechanism, allowing for quick and easy use. Thanks to its flexible design, it reliably safeguards gates, walls, and loading ramps.

Dock Lifting Barriers protect

Technical Specs

Download Technical Specs in PDF

Bollards

Diameter D - mm	Height H - mm	Resistance Joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
120	450	16 850	580	317	59	UL94: HB
140	450	23 950	580	265	59	UL94: HB

Lifting Guards

Diameter D - mm	Length L - mm	Resistance Joules	IP Grade	Flame Extinguishing Rate
125	2000-6000	23 250	59	UL94: HB

Customized solution and colours upon request

Impact Energy Calculator

Mass

Speed

Angle

(please fill in the details for calculation)

Impact energy result - Joules

10 000

12 500

20 000

25 000

30 000

37 500

40 000

50 000

..... Joules

Precisely What You Need

Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.

Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com

Contact form

Technology

FLEXAFE™

Cutting-Edge Polymer material, designed specifically to absorb high-level impacts in a very small space. It is food-safe, doesn't break or flake, and 100% recyclable.

FOOD SAFE

Resistance to Ultra-Violate Light DIN-EN-ISO 8777-8 Blue Scale

100% recyclable

Temperature Range -40° to +50°

Why is it beneficial to use FLEXAFE?

ROOTLOCK®

World‘s most advanced and safe Anchorage System. It helps the floor to absorb violent and repeat vehicles impacts without damaging the floor.

Cutting-edge Anchorage System Design

Anti-Shrinkage Cement

What makes ROOTLOCK® special?

Applications

Ramp Protection

Door Gate Protection

Frequently Asked Questions

Compliant Crash Testing

We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.

We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h)
We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
We make sure vehicle impact takes place at the worst-scenario angle: 90°.

Finally, Bambarrier product is certified compliant when:

It stops the crashing vehicle safely without breaking itself and without breaking the floor.
It can be hit repeatedly without getting loose and without breaking the floor.
When after an impact, it occupies a very small space on the floor.
