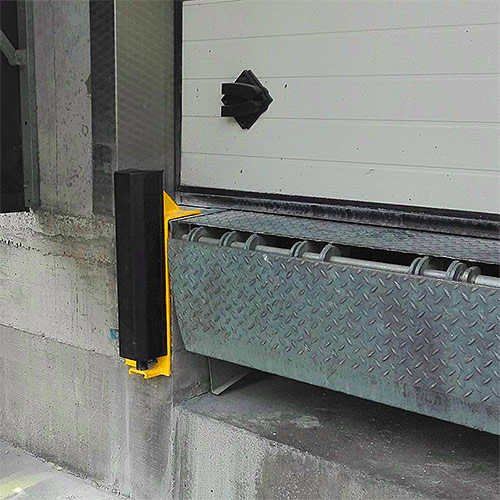

Loading Dock Buffers

When freight truck park against a loading dock, material loading and unloading provokes strong mechanical oscillations that stress the weakest points in a loading dock, which reduces its life time and increase maintenance costs. Bambarrier Loading Dock Buffers are equipped with heavy-duty rubber pads and internal heavy-duty springs to hedge and redistribute mechanical stress in an optimal manner, which reduces damages to loading dock, increase its efficiency and save on maintenance costs.

Loading Dock Buffers protect

Technical Specs

Download Technical Specs in PDF

Description	Technical Data
Construction	Iron Frame – Yellow Comaxite
Stop	Hardened Flexible Rubber

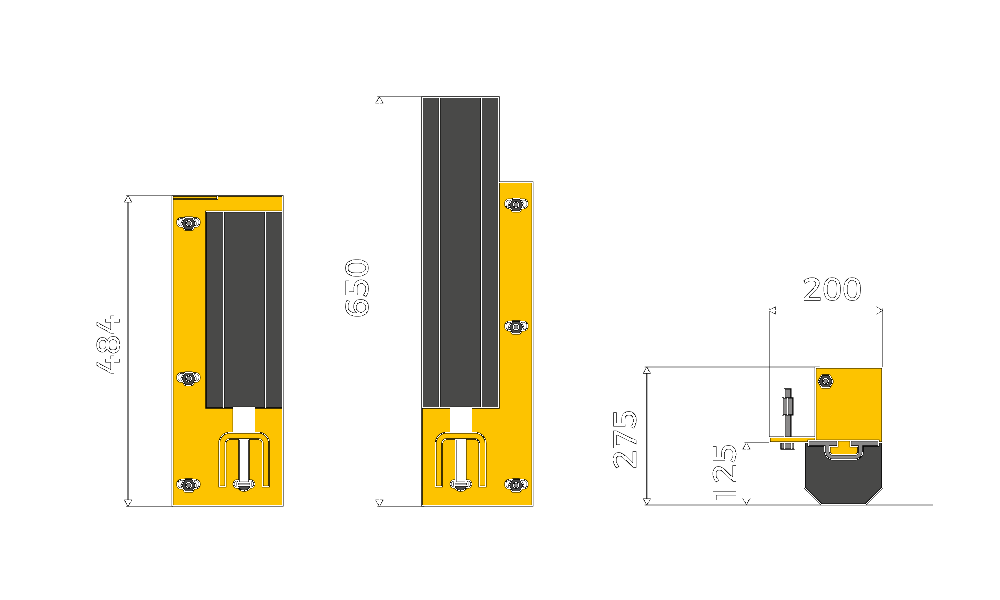

Height	484/650 mm
Depth	275 mm
Width	200 mm
Temperature Range	-30°C +50°C
Movement under Load	Up / Down
Shock Absorber	Mechanical Spring

Precisely What You Need

Call our Safety Consultant and receive a free, no-commitment Safety Assessment tailored to your needs.

Tel.: +39 347 46 74 056 / E-mail: info@bambarrier.com

Contact form

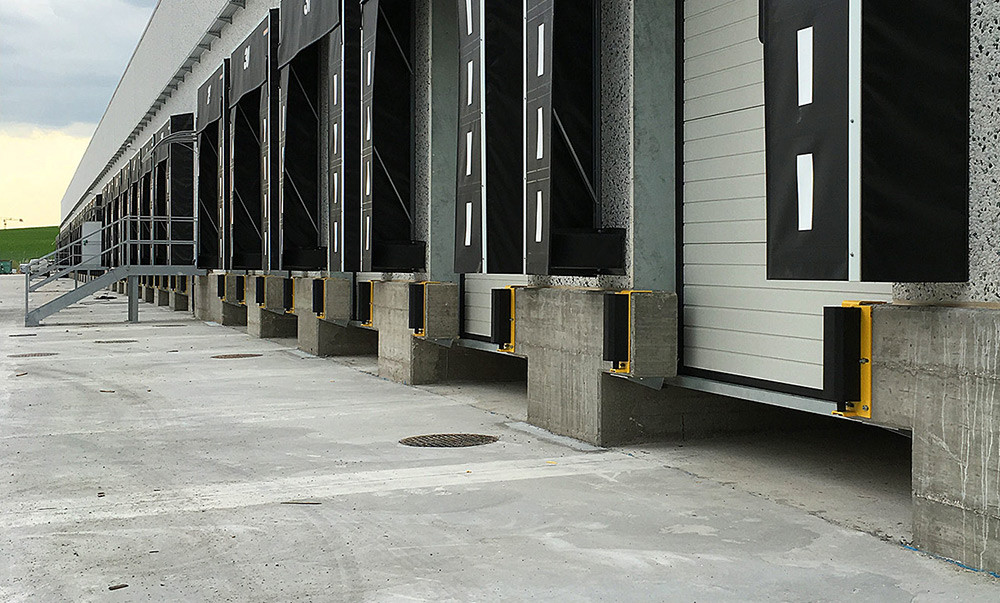

Applications

Frequently Asked Questions

Compliant Crash Testing

We test our products in compliance with the industry‘s World-class standards: PAS13:2017 and UNI 11886.

We measure barriers resistance in „Joules“ according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h)
We make sure test only on real floor: armed concrete; we don‘t test on metal platforms.
We make sure vehicle impact takes place at the worst-scenario angle: 90°.

Finally, Bambarrier product is certified compliant when:

It stops the crashing vehicle safely without breaking itself and without breaking the floor.
It can be hit repeatedly without getting loose and without breaking the floor.
When after an impact, it occupies a very small space on the floor.
